Grumman F6F Hellcat Fighter.

​Down Load template: Click "Down Load Template" button and print.  Or copy-paste the “print-out” of 4D template on your graphic program (such as PowerPoint) and add your label. Adjust the size as needed.



​Construction Photo Notes


Check discussion for construction. To see large image: Click picture.

WW2: The Hellcat vs The Zero.

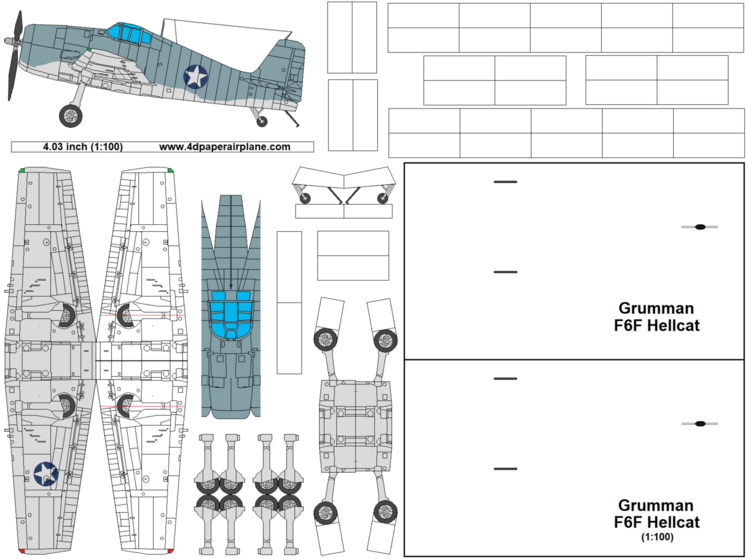

4D model template of Grumman F6F Hellcat

#4dpa

4D paper airplane:

​ Real look, really fly

pinterest

Grumman F6F Hellcat

model kit paper airplane template and how to make a paper airplane

(Skill index 4)

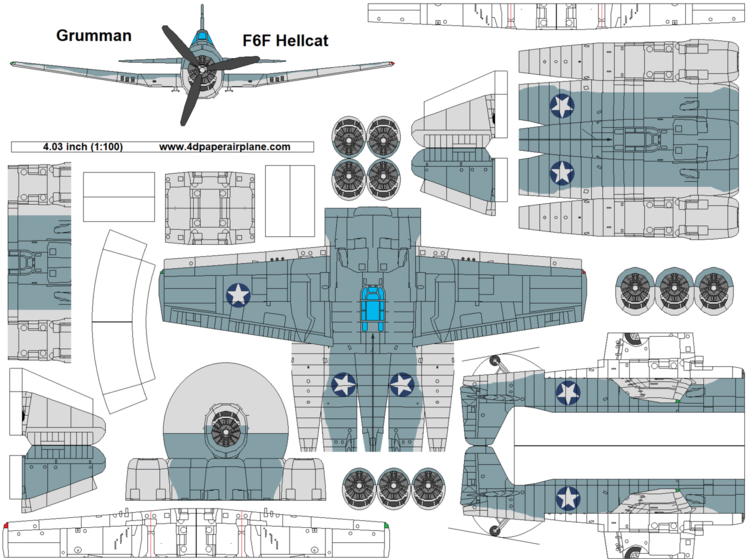

4D model template of Grumman F6F Hellcat

4D model template of Grumman F6F Hellcat.


4D Paper Airplane Group
Facebook Group · 187 members
Join Group
The 4D Paper Airplane Group is for people who love the 4D paper airplane. The 4D paper airplane is the scaled paper airplane that can also fly (http...


The Grumman F6F Hellcat is an American carrier-based fighter aircraft of World War II. Designed to replace the earlier F4F Wildcat and to counter the Japanese Mitsubishi A6M Zero, it was the United States Navy's dominant fighter in the second half of the Pacific War. The Hellcat competed with the faster Vought F4U Corsair for that role and prevailed, as the Corsair had significant issues with carrier landings. The Corsair, instead, was primarily deployed to great effect in land-based use by the U.S. Marine Corps.

Powered by a 2,000 hp (1,500 kW) Pratt & Whitney R-2800 Double Wasp, the same powerplant used for both the Corsair and the United States Army Air Forces (USAAF) Republic P-47Thunderbolt fighters, the F6F was an entirely new design, but it still resembled the Wildcat in many ways. Some military observers tagged the Hellcat as the "Wildcat's big brother".

The F6F made its combat debut in September 1943 and was best known for its role as a rugged, well-designed carrier fighter, which was able to outperform the A6M Zero and help secure air superiority over the Pacific theater. A total of 12,275 were built in just over two years.

Hellcats were credited with destroying a total of 5,223 enemy aircraft while in service with the U.S. Navy, U.S. Marine Corps, and Royal Navy Fleet Air Arm. This was more than any other Allied naval aircraft. Postwar, the Hellcat was phased out of front-line service but remained in service as late as 1954 as a night fighter.

Carrier-based fighter,
First flight:        June 26, 1942,
Introduction:     1943
Retired,

Production:      12,275 (1942-1945).

After Note:

The 4D model of Grumman F6F Hellcat.

Pay attention at: The top part/tail-fuselage (indicated below). Make sure of symmetrical in the constructions, which can cause tail-wing alignment.


Throughout the construction of the main wing, used of composite shims to shape the main wing with anhedral angle. (shown below)


Fly very well. The adjusted weight is posted.
