6. Final assemble.

4D paper airplane:

​ Real look, really fly

Discovery Channel Wings- Northrop F-5 Freedom Fighter.

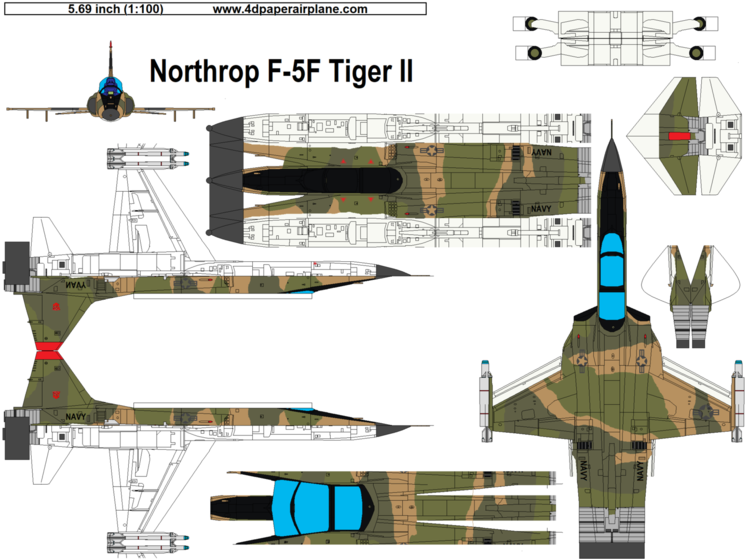

4D model template of Northrop F-5F Tiger II

After Note:

Pay attention at: keep the symmetry of the canopy and main fuselage.

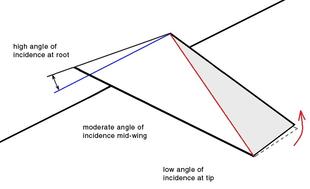

The F-5F design is a high-speed jet based with a relatively small wing. To adjust the 4D model of F-5F, it will need to know the aeronautics term called "washout". See the discussion of Washout


The wing need to pushup (1-2 degree) along the red line shown. This is a critical adjustment to fly well of F-5F 4D model. You can experience the Washout effect before and after adjustment.

Northrop F-5

model kit paper airplane template and how to make a paper airplane

4D model template of Northrop F-5F Tiger II

Video watch:
(follow video may contain depictions of violence, viewer discretion is advised.)

7. Base.

2. Tail wing.

Northrop F-5F Tiger II

​Down Load template: Click "Down Load Template" button and print.  Or copy-paste the “print-out” of 4D template on your graphic program (such as PowerPoint) and add your label. Adjust the size as needed.



​Construction Photo Notes


Check discussion for construction. To see large image: Click picture.

3. Bottom piece.

1. The main frame.

4D model template of Northrop F-5F Tiger II.

5. Front fuselage.

The F-5 Freedom Fighter Documentary.


4D Paper Airplane Group
Facebook Group · 207 members
Join Group
The 4D Paper Airplane Group is for people who love the 4D paper airplane. The 4D paper airplane is the scaled paper airplane that can also fly (http...


4. Top piece.

google plus

(Skill index 6)

#4dpa

pinterest

The Northrop F-5A and F-5B Freedom Fighter and the F-5E and F-5F Tiger II are part of a supersonic light fighter family, initially designed in the late 1950s by Northrop Corporation. Being smaller and simpler than contemporaries such as the McDonnell Douglas F-4 Phantom II, the F-5 cost less to both procure and operate, making it a popular export aircraft. The F-5 started life as a privately funded light fighter program by Northrop in the 1950s. The design team wrapped a small, highly aerodynamic fighter around two compact and high-thrust General Electric J85 engines, focusing on performance and low cost of maintenance. Though primarily designed for the day air superiority role, the aircraft is also a capable ground-attack platform. The F-5A entered service in the early 1960s. During the Cold War, over 800 were produced through 1972 for U.S. allies. Though the United States Air Force (USAF) had no need for a light fighter, it did procure approximately 1,200 Northrop T-38 Talon trainer aircraft, which were directly based on the F-5A.

After winning the International Fighter Aircraft competition in 1970, a program aimed at providing effective low-cost fighters to American allies, Northrop introduced the second-generation F-5E Tiger II in 1972. This upgrade included more powerful engines, higher fuel capacity, greater wing area and improved leading edge extensions for a better turn rate, optional air-to-air refueling, and improved avionics including air-to-air radar. Primarily used by American allies, it remains in US service to support training exercises. It has served in a wide array of roles, being able to perform both air and ground attack duties; the type was used extensively in the Vietnam War. A total of 1,400 Tiger IIs were built before production ended in 1987. More than 3,800 F-5 and the closely related T-38 advanced trainer aircraft were produced in Hawthorne, California. The F-5N/F variants are in service with the United States Navy and United States Marine Corps as an adversary trainer. Approximately 500 aircraft are in service as of 2014.

The F-5 was also developed into a dedicated reconnaissance version, the RF-5 Tigereye. The F-5 also served as a starting point for a series of design studies which resulted in the Northrop YF-17 and the F/A-18 navalized fighter aircraft. The Northrop F-20 Tigershark was an advanced variant to succeed the F-5E which was ultimately canceled when export customers did not emerge.

Light fighter,
First flight:        F-5A: July 30, 1959, F-5E: August 11,1972,
Introduction:     1962
In Service,

Production:      A/B/C(Freedom Fighter): 847, E/F(Tiger II): 1,399.
